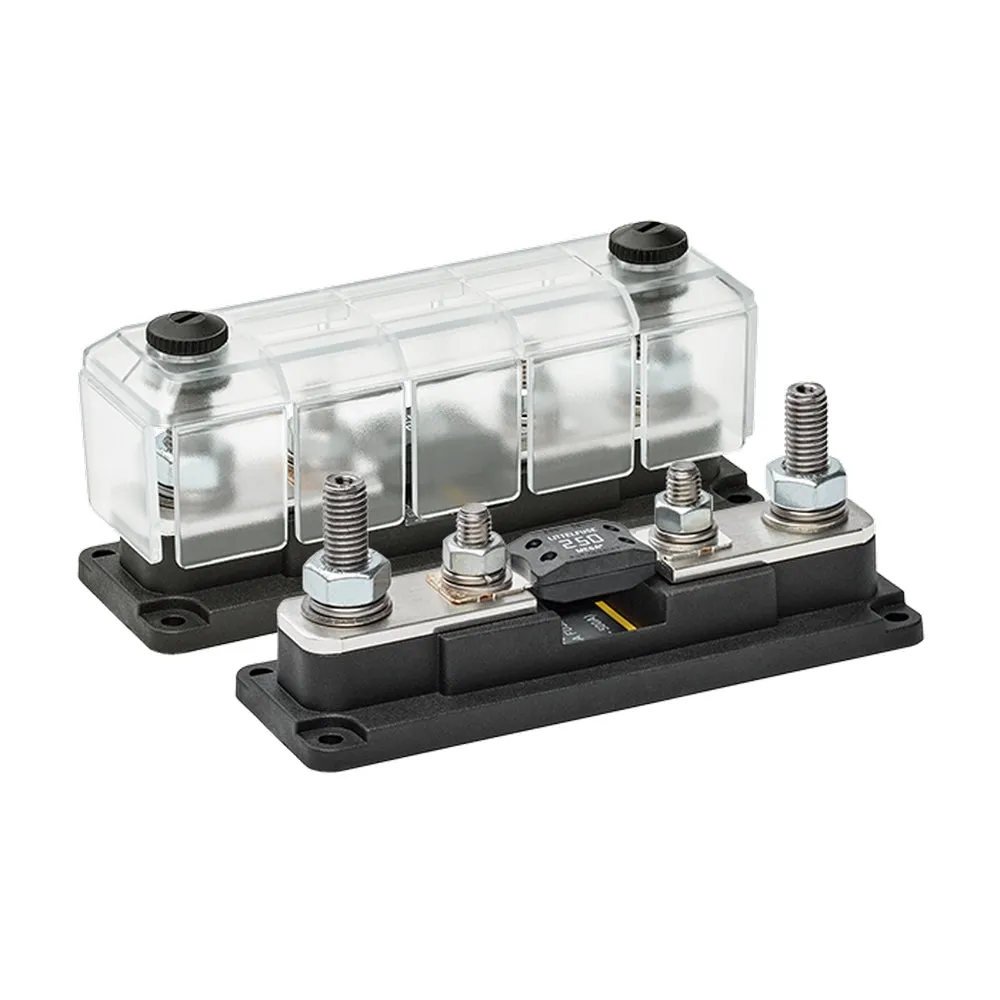

The DC Modular fuse holder for Mega type fuses rated up to 500A. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.
Features:
- Stainless steel studs, nuts and washers for optimal corrosion resistance
- Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
- Special fibre reinforced base material offers excellent high temperature properties, good chemical resistance and high strength

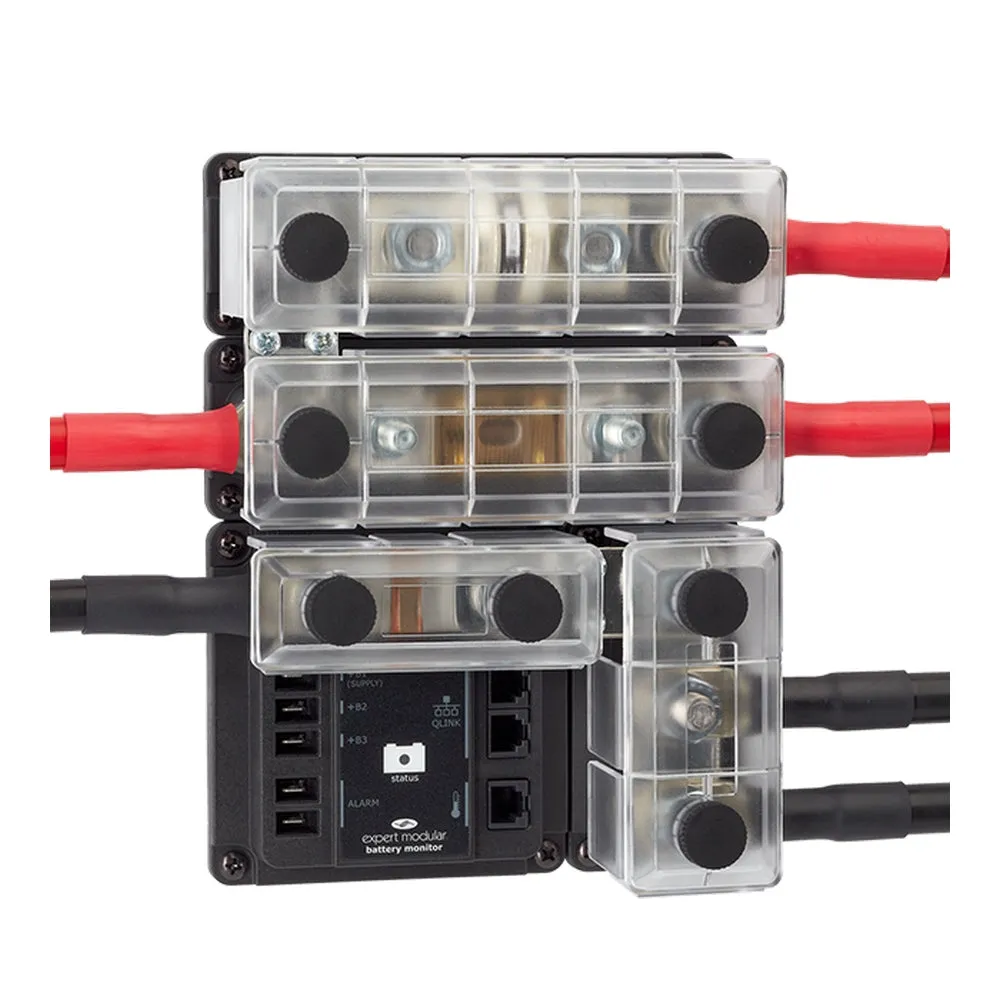

- Unique grid optimized footprints allow space saving arrangements of multiple products
- Robust transparent covers with breakouts to allow wire access from any direction
- Smart terminal design allows dual mirrored cable lug connections
Product Info:
- Fuse Range: 40-500A
- Max Voltage: 60V DC
- Stud Size: M10
- Dimensions: 150 x 50 x 64.5mm (L x W x H)
