Product Details
＋

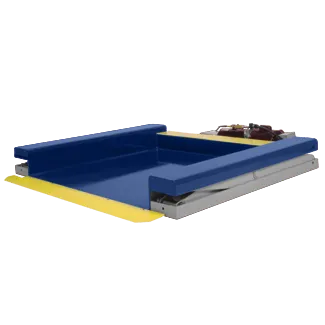

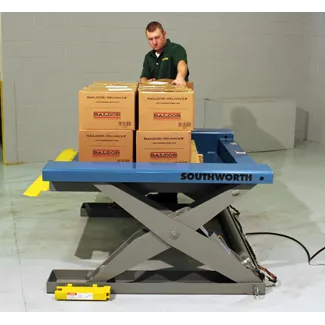

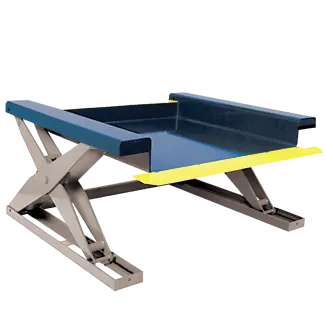

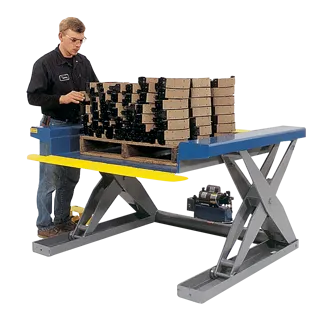

Southworth Floor Height / Floor Level lift tables are low-profile lift tables feature a unique pan-style platform that lowers to floor or near floor height so that they can be fed and offloaded by hand pallet trucks. The platform shape makes these units ideal for use as pallet lift tables. Low-Profile floor height lift tables are available in 2,000, 4,000 and 6,000 lb. capacities. An elastomeric front edge prevents toe injury.
Features
- Pan-Style Platform Lowers to Floor Height

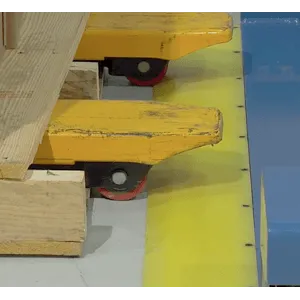

- Floor Level Platform Can Be Loaded and Unloaded with Hand Pallet Truck
- Safety Yellow, Elastomeric Edge Protects Workers
- Four Sided Access to Pallets
- Available is 2000, 4000 and 6000 Lb. Capacity
Technical Data
| Model Number |
Load Capacity |
Raised Height |
Low Height |
Platform Size |
Motor HP |
Voltage/ Phase/Hz |
Rise Time |
Shipping Weight |
Budget Range |
|
|---|---|---|---|---|---|---|---|---|---|---|
| ZLS2-35 | 2000 lbs | 35.375" | .375" | 50 x 48" | 1.0 | 115/1/60 | 45 sec | 1425 lbs | $5,500-$5,900 | |
| ZLS4-35 | 4000 lbs | 35.375" | .375" | 50 x 48" | 1.0 | 115/1/60 | 48 sec | 1440 lbs | $5,800-$6,200 | |
| ZLS6-34 | 6000 lbs | 34.5" | .5" | 50 x 48" | 1.0 | 115/1/60 | 63 sec | 1800 lbs | $9,100-$9,800 | |
