Name: Security Alarm Cable - Plenum (CMP) - 22/4 AWG, CL3P, Stranded (7 Strand), Unshielded, 1000ft, White
SKU: 226716

Product Details ＋

Description

Plenum (CMP) - Security Alarm Cable - 22/4 AWG, CL3P, Stranded (7 Strand), Unshielded, 1000ft, White'

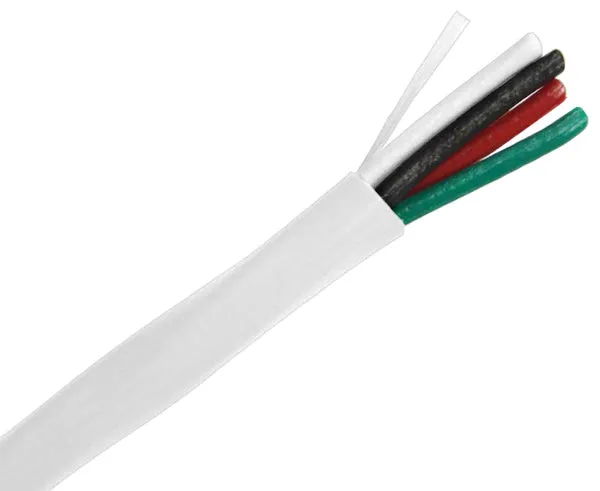

This 22/4 Plenum Security Alarm Cable features four 22 gauge stranded copper conductors. Tailored for security systems but versatile enough to be used for intercom systems, power limited controls and sound/audio systems. Constructed from 7 strand bare copper cable. It is unshielded with a plenum CMP rated white colored jacket and is manufactured in the USA, this 22/4 plenum security cable is available in increments of 1,000 ft.

Features

22 AWG 4 conductors
7 stranded bare copper conductors
Low smoke PVC insulation
Unshielded
Low smoke white PVC jacket
Sequential footage marking
CL3P/FPLP rated jacket
UL listed
ETL listed
RoHS compliant
NEC articles

22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
14-12 AWG: FPLP, CL3P

Residential or commercial applications:

Security systems
Intercom systems
Sound/audio systems
Power-limited controls

Specifications

Physical Construction
Inner Conductor	Stranded Bare Copper
Conductor Size	22 AWG
Insulation	PVC
Nominal OD	3.63mm
Outer Jacket Diameter	.38mm
Jacket	Low Smoke PVC
Jacket Color	Gray
Number of Strands	7
Inner Conductor Diameter	1.2mm

Electrical Characteristics
Temperature	75°C
Voltage Rating	300V
Center Resistance	21.20 (Ω/km)

Additional Information
Standards	ETL \| RoHS \| CMP \| CL3P
Applications	Security Systems \| Intercom Systems Sound \| Audio Systems \| Power-Limited Controls
Jacket Printing	22 AWG 4C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT
Important Notes	The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.
