Descriptions

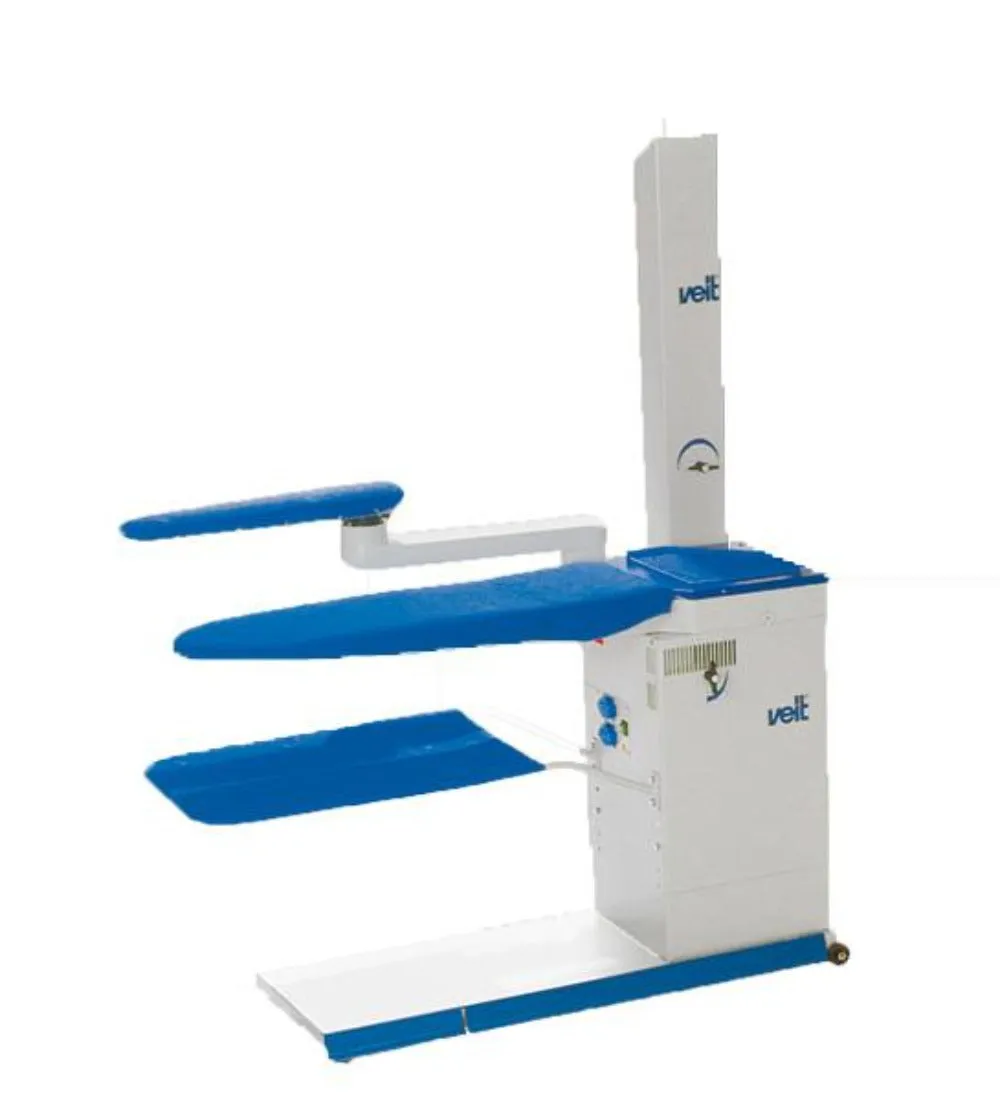

Veit 4255 DB Uniset (s b) Point Left

Professional ironing table with suction, blowing, air-vent chimney, swivel arm, and sleeve buck (medium).

Consisting of:

1. UV425502: Veit 4255 DB Uniset (s b) Point Left, with Air-Vent Chimney

   • Electrical Specifications:

     • Voltage: 200-240V
     • Frequency: 50Hz
     • Power: 700W

   • Components:

     • SC020231: Uniset Base Module (s b)
     • SC020010: Uniset DB Surface with Standard Cover and Spill Tray
     • SC020036: Uniset Swivel Arm with Sleeve Buck (Medium) & Standard Cover
     • SC020049: Air-Vent Chimney
     • SC020061: Bottom Plate (s b)

2. ZPK030025: Ply-Board Pallet

   • One ply-board pallet can only load 4 sets of ironing tables or boilers.

Additional Specifications:

• Electrical Connection:
  • Current: 4A
  • Fuse Protection: 16A
  • Connection Cable: 3 meters with plug
• Weight: 41 kg / 90 lbs
• Working Height: Adjustable in 6 steps
  • Heights (in mm): 720, 770, 820, 870, 920, 950
  • Heights (in inches): 28.4, 30.3, 32.3, 34.3, 36.2, 37.4
• Sound Level (measured at height 1.6 m and 0.5 m from the front):
  • Suction: 69 dB (A)
  • Blowing: 70 dB (A)

Key Features:

• Height Adjustable: In 6 steps ranging from 720-950 mm (28.4-37.4 inches), allowing ergonomic customization for operators.

• Suction and Blowing Power:

  • Provides excellent suction and blowing power, reducing cycle times for more efficient production.
  • Manual Adjustment: Users can manually adjust suction power, or switch between suction and blowing, giving full control over the process.

• Automatic Redirecting:

  • The system automatically redirects the suction or blowing power when the swivel arm is in use, optimizing workflow and minimizing manual adjustments.

• Mobility:

  • Equipped with wheels, offering high flexibility in production environments, allowing the table to be easily moved as needed.

• Sound Absorber Option:

  • Available with a sound absorber for quieter operation in noise-sensitive environments.

• Accessory and Buck Variety:

  • The ironing table offers a wide range of accessories and bucks, making it adaptable to different types of garments and production needs.
