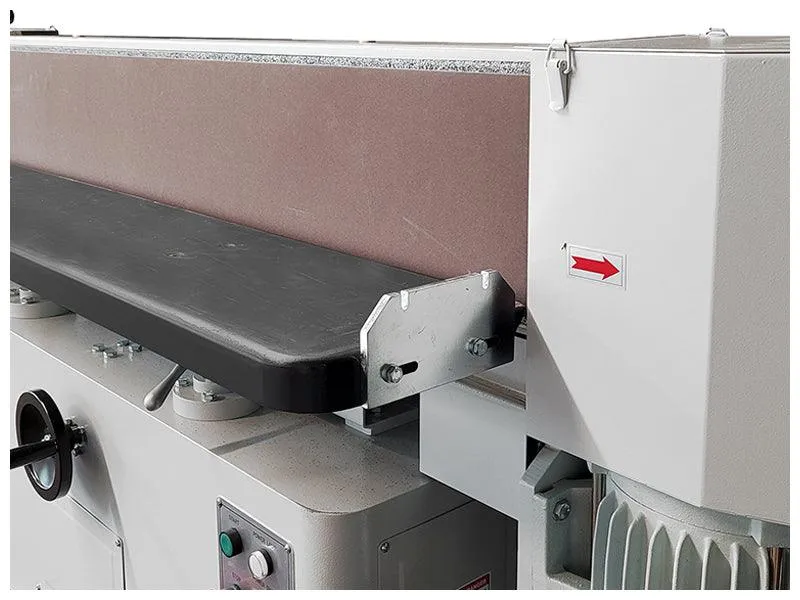

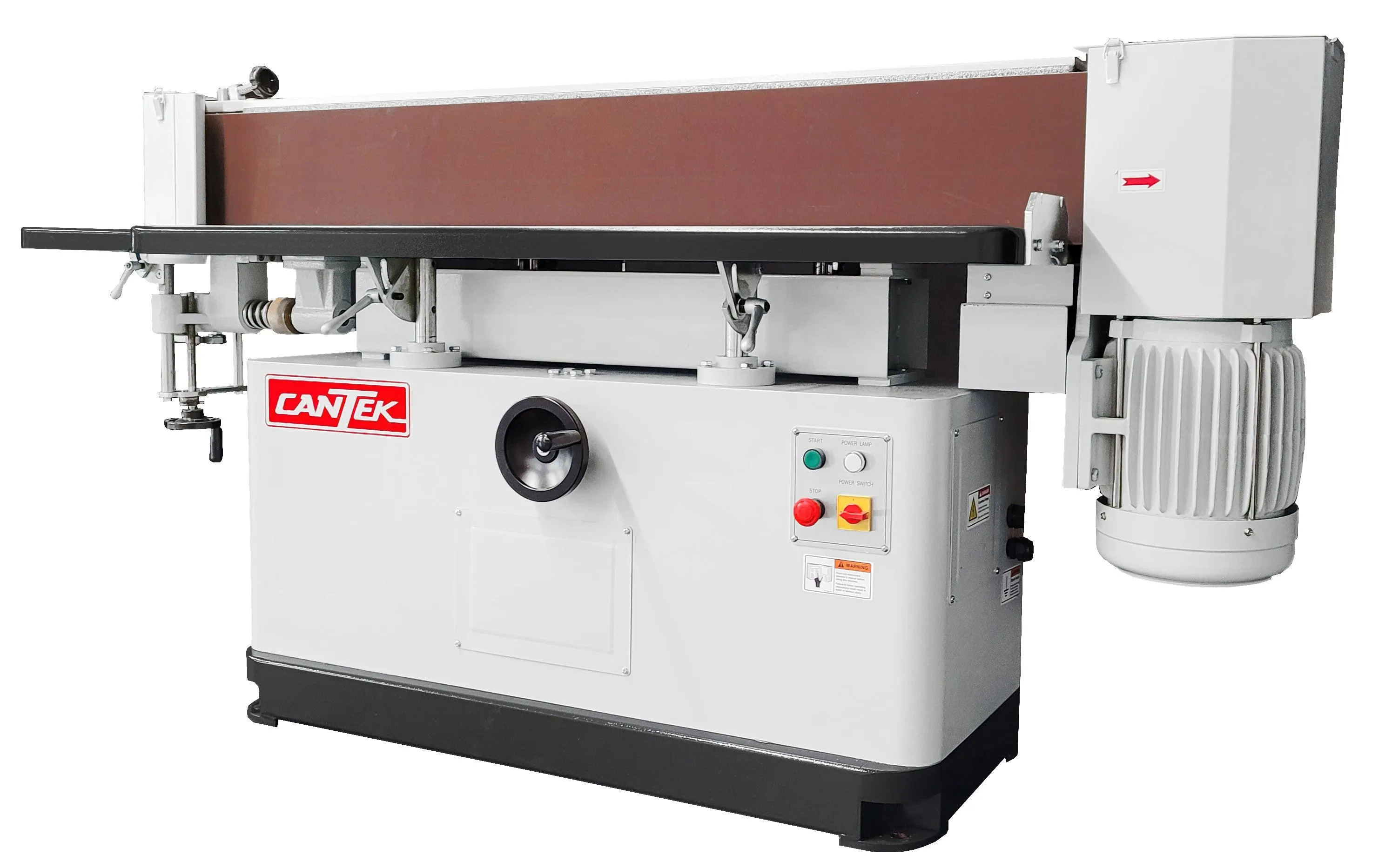

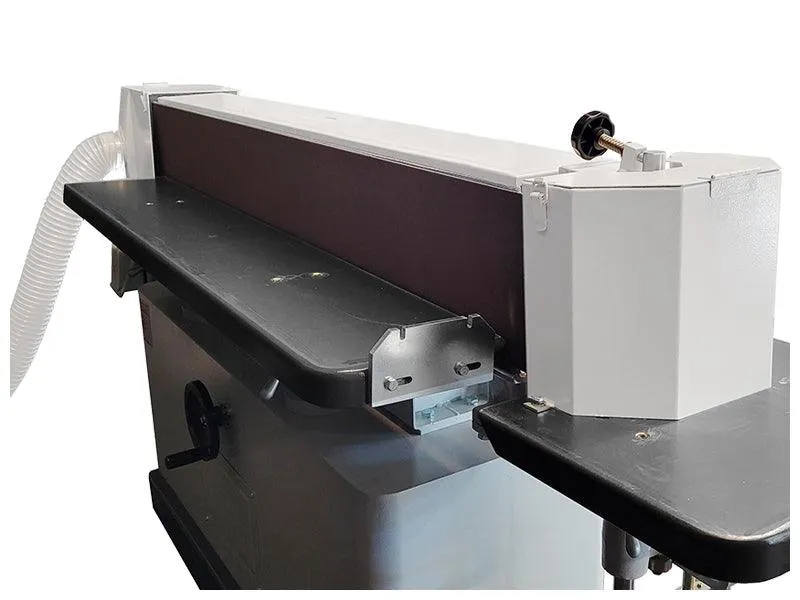

The Cantek OES509D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use.  Equipped with a 9” high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more.  The OES509D is also equipped with dual front and rear tables which are adjustable up & down and can be tilted to 45 degrees, allowing for a wide range of applications and for full utilization of the sanding belt.  The dual tables also allow for two operators to be working on the machine at the same time made possible by the powerful 7.5 HP sanding motor.  The adjustable and tiltable end table allows for sanding of curved components on the idle pulley.  The belt oscillated up and down which helps in keeping it cool while also producing an optimum sanded finish.

Why Cantek OES509D Heavy Duty Oscillating Edge Sander ?

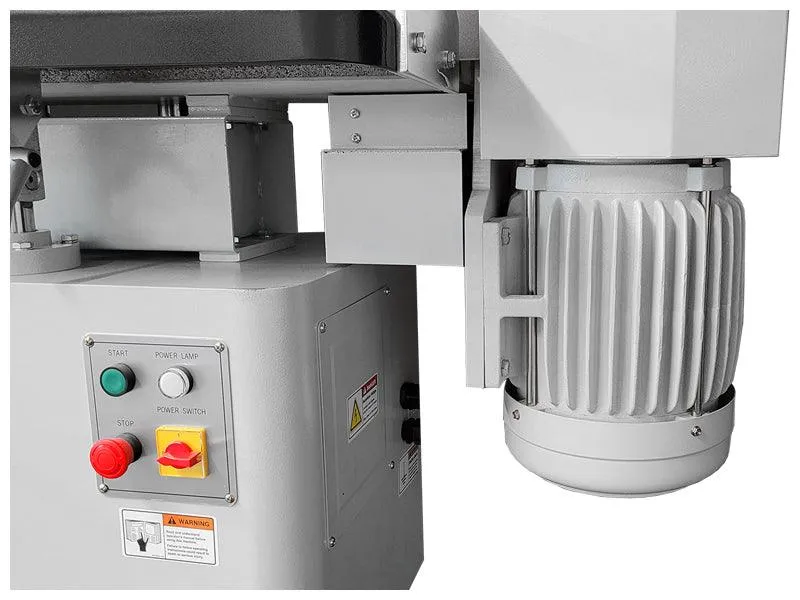

• Heavy-duty design with powerful 7.5HP driving motor offers high efficiency in production environments

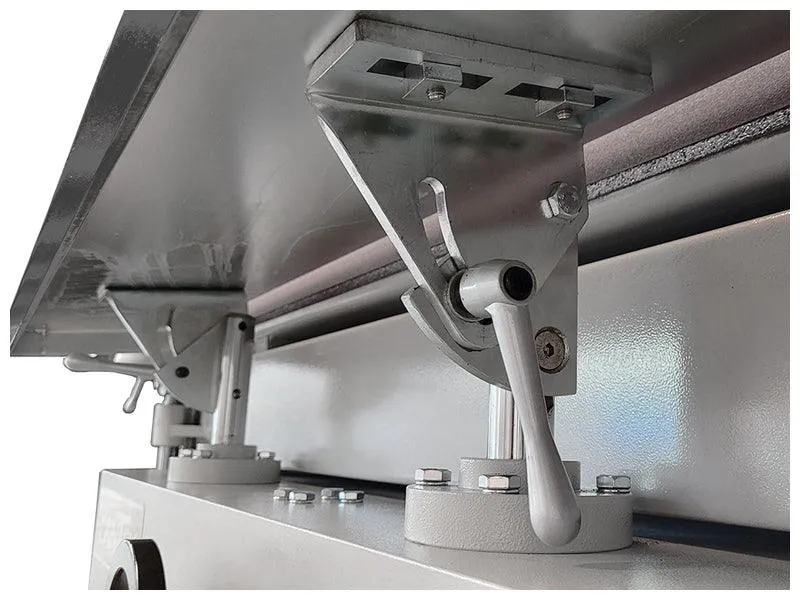

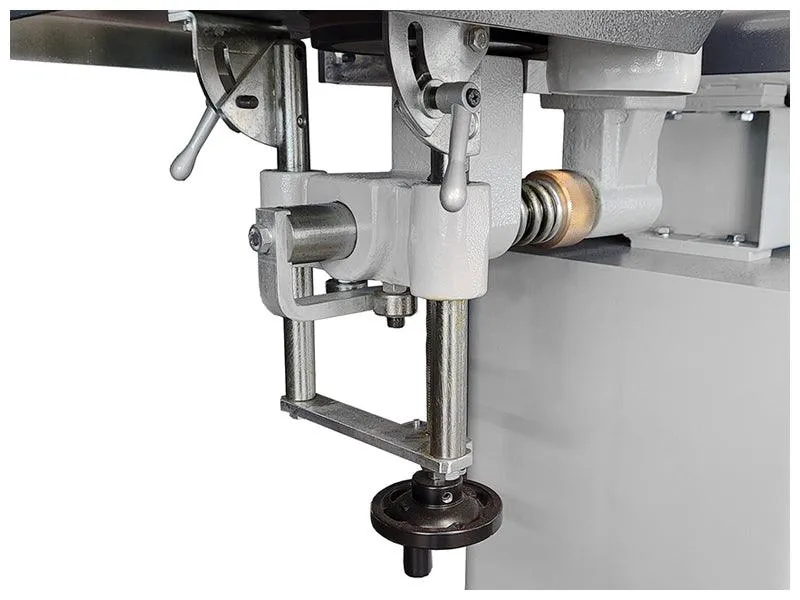

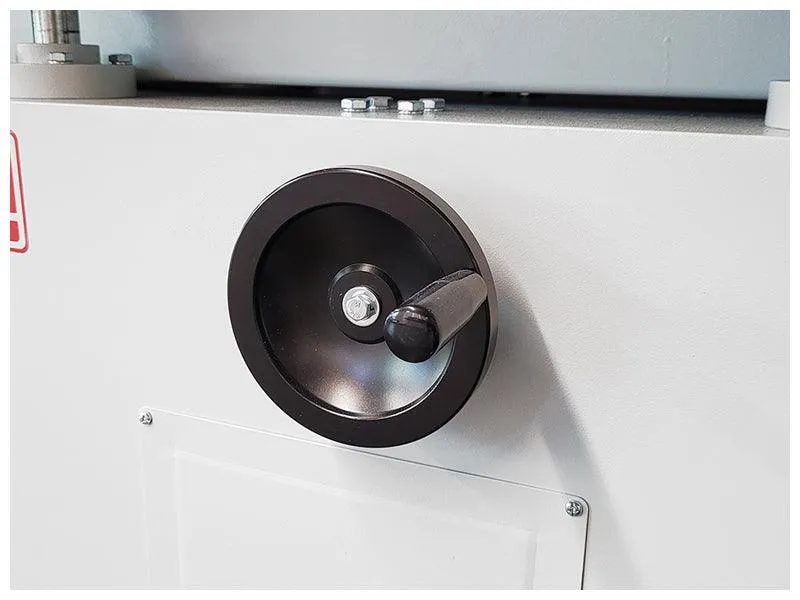

• Front, back and side tables are adjustable in height by handwheel and can be tilted for bevel sanding operations
• Oscillating sanding belt for optimum sanding results
• Quick belt change with adjustable belt tension

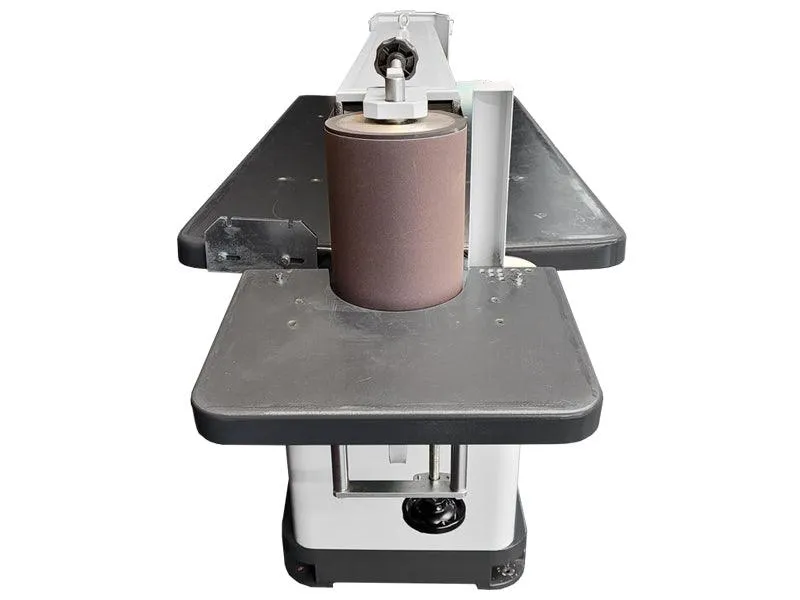

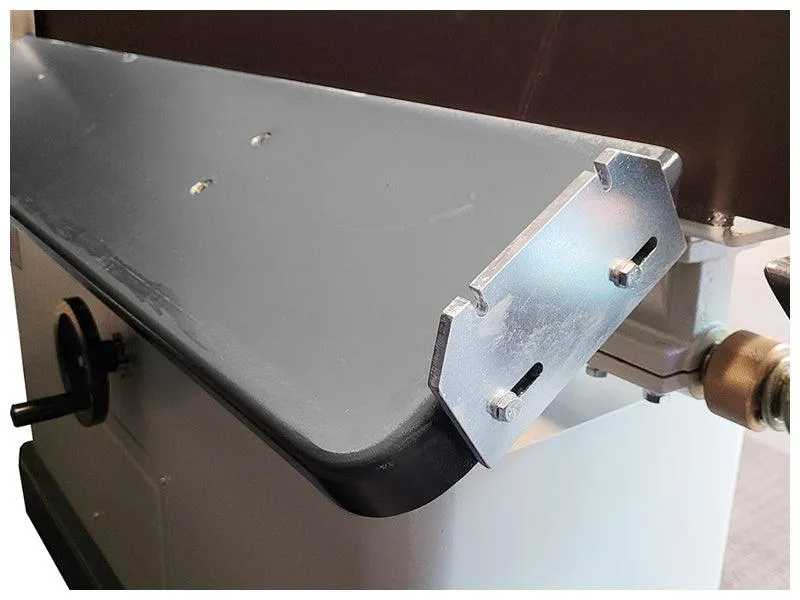

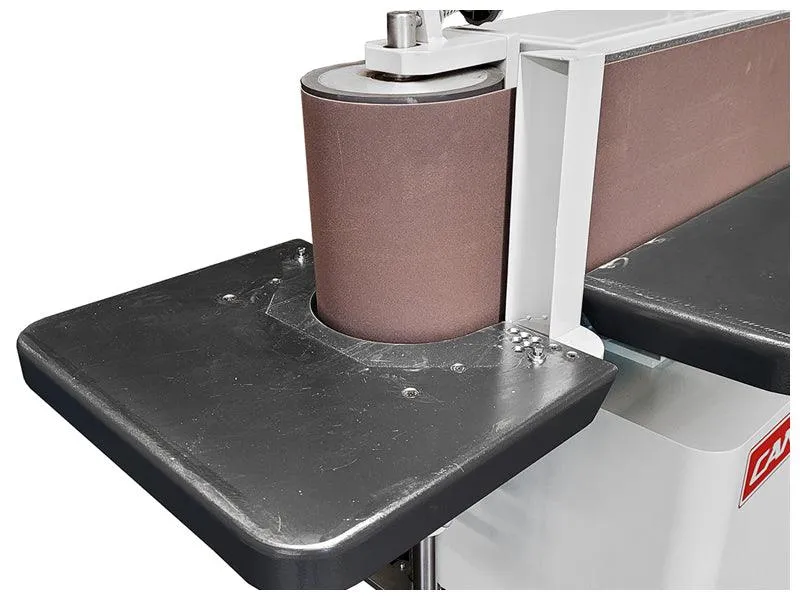

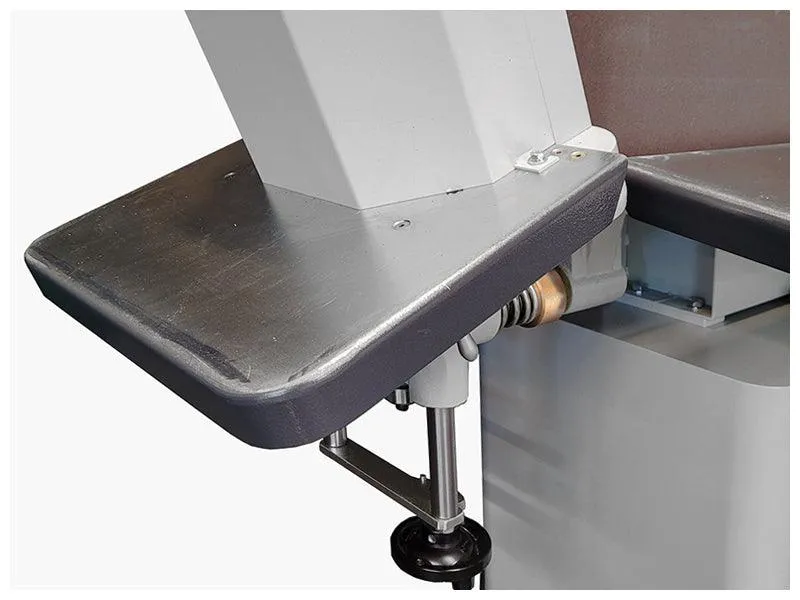

• Side table can be used for sanding the curve style work pieces.

• Built of heavy welded plate steel for rugged base construction and vibration free sanding
• Belt oscillation by gear reducer

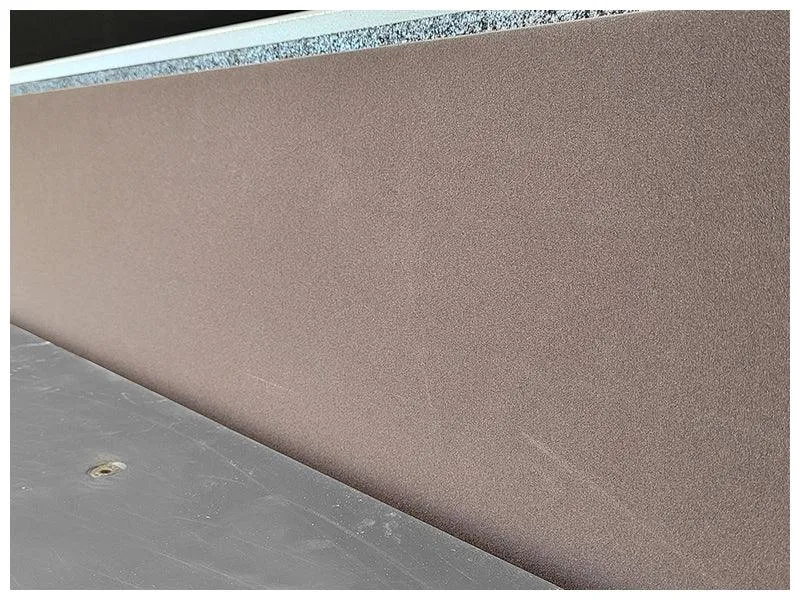

• 9” x 165” sanding belt
• Front and rear sanding platens are covered with anti-friction graphite cloth




Sanding motor	7.5 HP
Oscillating stroke	0.472″	12mm
Sanding belt size	9″ x 166″
Sanding belt speed	970 MPM
Worktable dimension: front	10.43″ x 60.9″	265x1545mm
Worktable dimension: rear	10.43″ x 60.9″	265x1545mm
Worktable dimension: side	13.8″ x 17.7″	350x450mm
Front table tilt	45o
Side table tilt	45o
Dust port	(2) 4″	(2) 100mm
Machine measurement	90.55″ x 30.7″ x 48″	2300x780x1220mm
Packing measurement	94.5″ x 34.6″ x 56″	2400x880x1420mm
Machine weight	1100 lbs.	500 kgs
Shipping weight	1375 lbs.	625 kgs
