High volume cord distribution from angled patch panels at the front of 19" equipment racks, cabinet enclosures and hinged wall-mount brackets.

About:

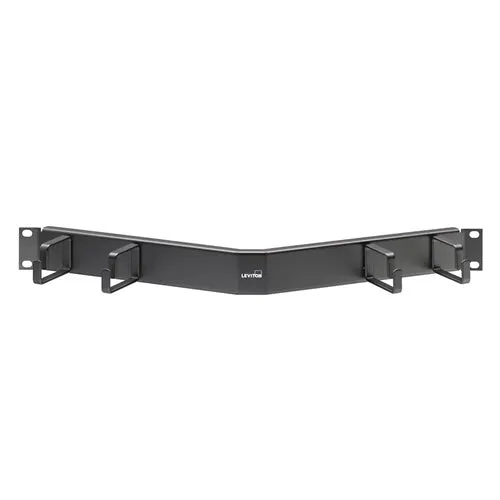

A 1 RU Angled Horizontal Patch Cord Organizer is a device used within a 19-inch standard equipment rack (common in IT, data centers, and audio-visual setups) to manage and organize patch cords or cables. Given its "1 RU" specification, it occupies 1 Rack Unit of space in the rack, which is equivalent to 1.75 inches in height.

Common Applications:

• Data Centers: Given the high density of servers and networking equipment in data centers, cable management is crucial. This organizer helps streamline the numerous patch cords connecting servers to switches, routers, and other devices.

• Telecommunications Rooms: In enterprise environments, telecom rooms or intermediate distribution frames (IDFs) house the equipment that connects workstations to the main server room or data center. Patch cord organizers are used here to manage the connections between switches, patch panels, and other equipment.

• Server Rooms: In smaller organizations or branch offices, a dedicated server room might serve as the primary hub for IT equipment. The organizer aids in managing connections, ensuring easy maintenance, and reducing clutter.

• Network Closets: In buildings or campuses, there might be multiple small network closets distributed across the location, facilitating local connections. Proper cable management in these spots is crucial to prevent downtime and ease troubleshooting.

• Audio-Visual Installations:In theaters, concert venues, or conference centers, managing audio and video patch cords effectively is essential for performance quality and ease of equipment swap-outs or changes.

• Broadcast Studios:In radio or television studios, there's often a need to patch different audio or video sources. Patch cord organizers help manage these cables, ensuring clarity and reducing interference.

Features:

• Distribution rings are radius-edged (smooth-polished) to protect cable from nicks or wear.
• Oversized distribution rings accommodate patch cords.
• Four-ring design reduces cord stress and improves containment near patch panels.

Standards:

Meets or exceeds all applicable standards: UL Listed; CSA Certified; Complies with TIA/EIA-568-B and TIA/EIA-606.

Specification:

• Material: 16 Gauge Steel
• Dimensions: 11/2-2" depth rings
• Part No: 49254-LPM

Construction:

1 RU Angled Horizontal Patch Cord Organizer is designed to ensure durability, ease of use, and efficient cable management.
